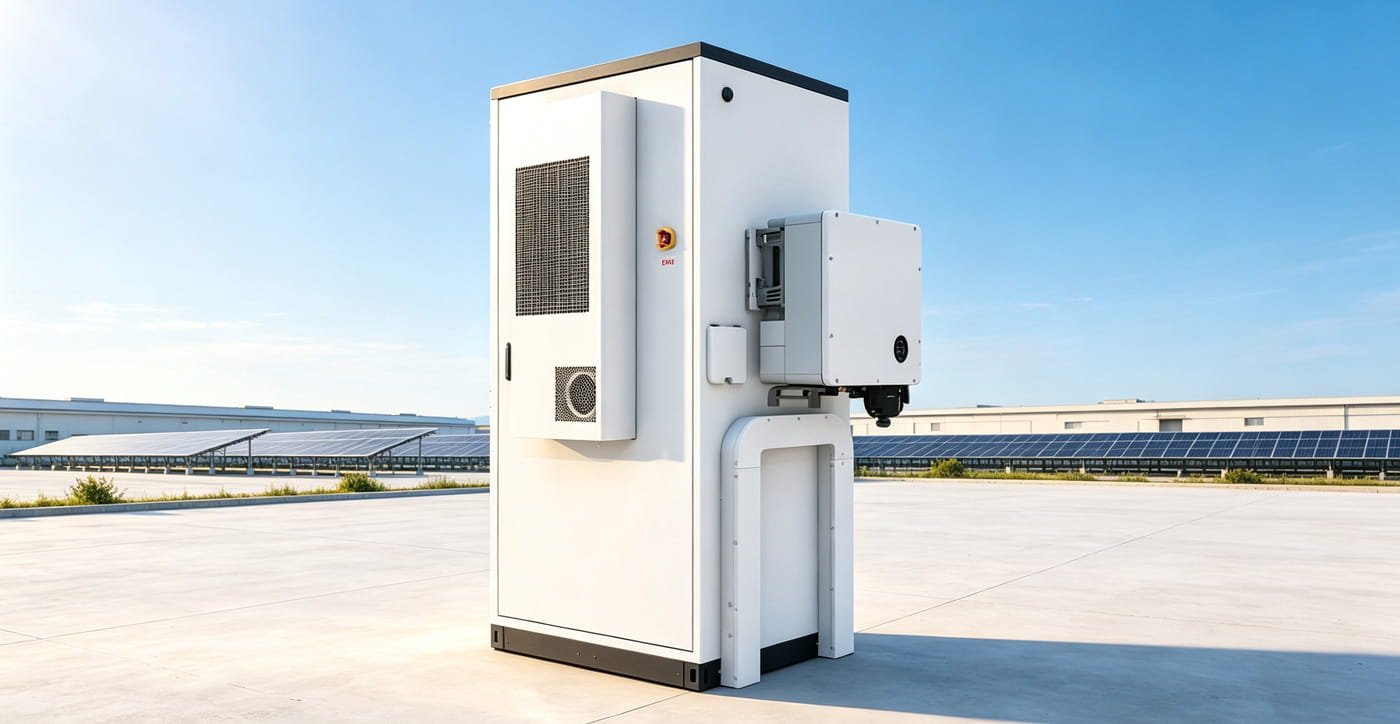

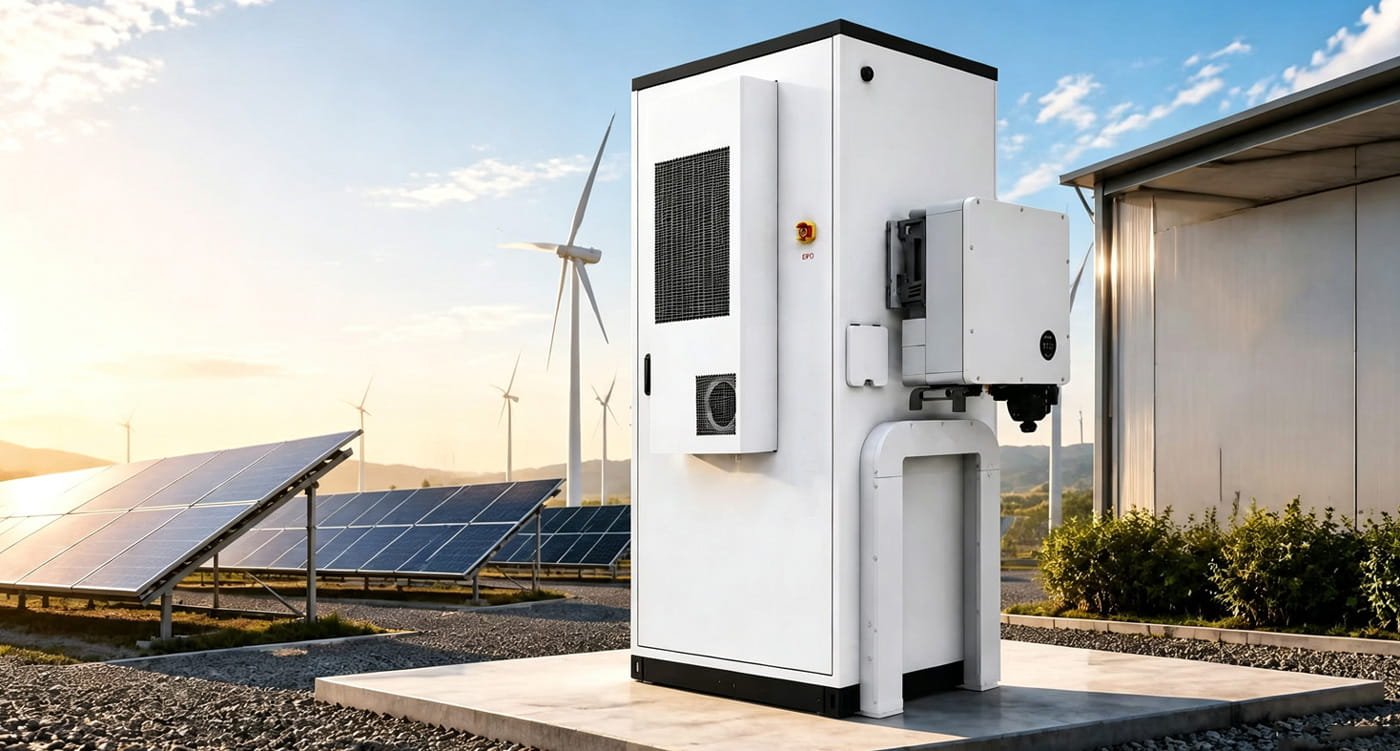

An industrial and commercial energy storage integrated machine is an all-in-one system that combines lithium iron phosphate batteries, a bidirectional power converter, battery management system, and energy management controls in a single cabinet. Designed for factories, commercial buildings, microgrids, and renewable energy projects, it stores electricity and intelligently supplies power when needed. With a capacity range of 125–261 kWh, the system supports solar energy storage, peak shaving, demand management, backup power, and grid-tied or off-grid operation. Its compact design, remote/local control, high efficiency, and IP54 protection make energy management simpler, safer, and more reliable.
Specifications
| Item | Specification | Remarks |
| Rated power | 135 kW AC / 125 kW battery charge-discharge | 1.1× for 10 min; 1.2× for 1 min |
| AC voltage / frequency | 380/400 (-15% to +15%) VAC · 50/60 (-2.5 to +2.5) Hz | Three-phase, four-wire |
| Battery chemistry | Lithium iron phosphate (LFP) | 314 Ah @ 0.5P |
| Pack / system configuration | 1P52S · 5 × 1P52S | — |
| Rated energy / voltage | 261.25 kWh · 832 V | Voltage range: 728–936 V |
| Depth of discharge | 95% DOD | — |
| Cycle life | ≥6000 cycles | @25°C, 0.5P/0.5P, 80% SOH |
| Maximum system efficiency | ≥87% | Maximum bi-directional converter efficiency: 98.5% |
| Dimensions / weight | 1000 × 1300 × 2500 mm · approx. 2500 kg | Confirm final shipping configuration |
| Operating conditions | -30°C to +50°C · 5–95% RH non-condensing | Storage: -30°C to +60°C · altitude ≤3000 m |
| Protection / operating mode | IP54 · corrosion resistance C3 · grid-tied / off-grid | Remote / local control |
Ready for demanding energy scenarios.
Deploy where power quality, peak demand and renewable energy economics matter most.
Solar self-consumption: Capture daytime PV generation and use stored energy after sunset or during cloud cover.
Peak shaving & demand management: Discharge during high-tariff periods to reduce demand charges and smooth site load.
Backup for critical loads: Support facilities that need continuity through grid interruptions and unstable supply.
Microgrid and off-grid operation: Coordinate local generation and storage for resilient commercial or industrial sites.
