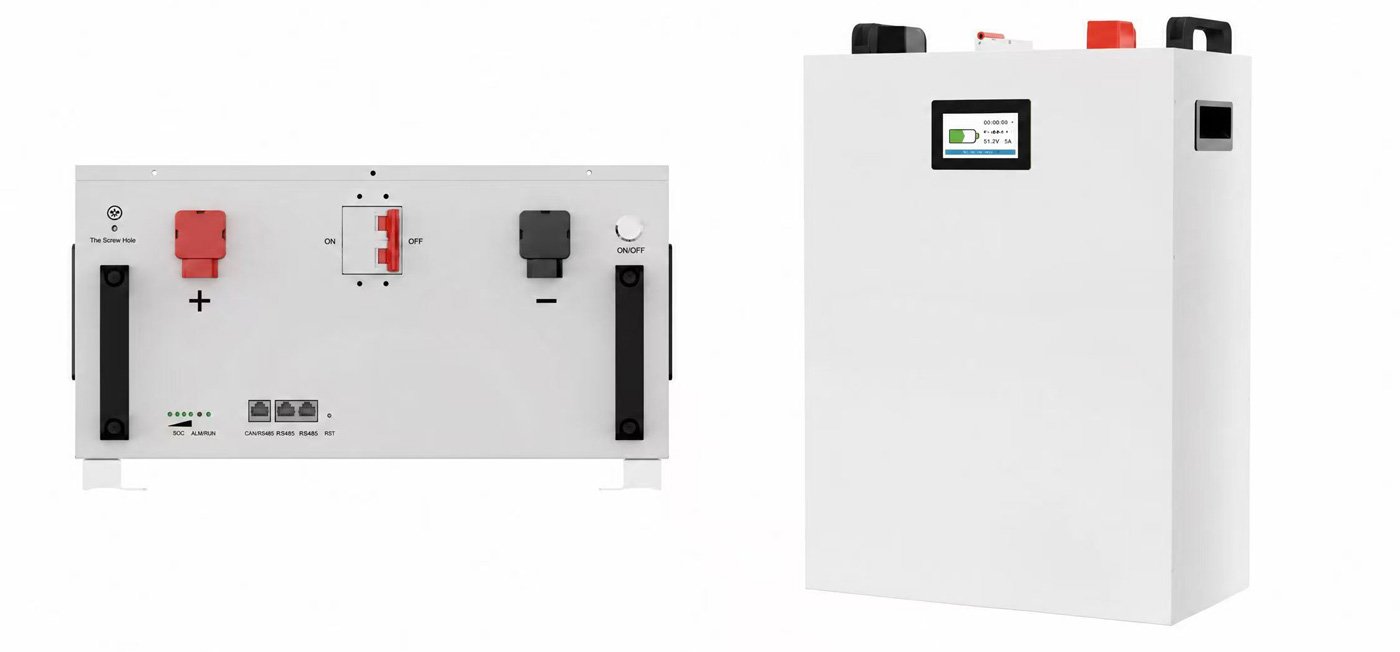

Home Energy Storage Lithium Ion Battery is a smart, reliable solution for storing solar or grid electricity for use when it is needed most. This battery uses safe, long-lasting LiFePO4 chemistry and provides 10.49 kWh of energy at 51.2 V and 205 Ah. Its modular design supports wall-mounted, floor-mounted, or stackable installation, while multiple units can be connected in parallel to expand capacity. An intelligent BMS protects against overcharge, over-discharge, overcurrent, and temperature issues. With a touch display, flexible communication options, and a wide operating temperature range, it is ideal for modern residential energy management.
Features
Touch display: Built‑in touch display for real‑time battery status & data visualization, supporting parameter setting and protocol customization.
Safe and reliable: Cathode material is made from LiFePO4 with safety performance and long cycle life. The module has less self‑discharge, up to 6 months without charging it on shelf, no memory effect, excellent performance of shallow charge and discharge.
Intelligent BMS: It has protection functions including over‑discharge, over‑charge, over‑current and over‑high or low temperature. The system can automatically manage charge and discharge state and balance current and voltage of each cell.
Available flexible expansion: Support Wallmounted, Floor‑Mounted and Stackable installation
Flexible configuration: Multiple battery modules can be in parallel for expanding capacity and power. Support USB upgrade, WIFI upgrade (optional), remote upgrade
Wide temperature: Working temperature range is from ‑20 ℃ to 55℃, with excellent discharge performance and cycle life.
Specifications
| Energy | 16.08kWh | 20.48kWh |
| Product Dimension (W/H/D) | 435*932*287mm / 17.1*36.7*11.3 in | 650*1005*400mm / 25.9*39.6*15.7 in |
| Product Weight Approximate | 130kgs / 421 lbs | 210.5kgs / 464 lbs |
| Basic Parameters | ||
| Warranty Period | 5 years | 10 years |
| Cycle Life (25±2°C,0.5C/0.5C,80%EOL) | ≥6500 | ≥6500 |
| Storage Time / Temperature | 5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C | 5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C |
| Operation Temperature | -20°C to 60°C @ 60+/-25% Relative Humidity | -20°C to 60°C @ 60+/-25% Relative Humidity |
| Storage Temperature | 0°C to 45°C @ 60+/-25% Relative Humidity | 0°C to 45°C @ 60+/-25% Relative Humidity |
| Certification | CB IEC62619, CE, UN38.3, MSDS | CB IEC62619, CE, UN38.3, MSDS |
| IP Rating of Enclosure | IP20 | IP20 |
| Electrical Parameters | ||
| Operation Voltage | 46-56Vdc | 46-56Vdc |
| Max. Charging Voltage | 56Vdc | 56Vdc |
| Max. Charging Current | 150A | 150A |
| Max. Discharging Current | 150A | 150A |
| Max Power | 7680W | 7680W |
Huadong Import And Export Co., Ltd. is a leading provider of innovative energy storage solutions, specializing in solar energy storage systems and new energy storage systems. We are committed to advancing sustainable energy technologies to create a brighter future for generations to come.
Please feel free to leave your requirement, We will reply you in 12 hours.
